12G-SDI to HDMI2.1 Converter Box

Product ID: SD-7076

● Converts 12G-SDl x 4ch to HDMI 2.1 FRL (8K/60p, 4K/120p, etc.)
● Supports DSC (Display Stream Compression) 1.2
● Supports HDCP 1.4 and 2.3
● Simple signal generation function (Color Bar, audio 1kHz - 18dB)
● 12G-SDI loop through connection
● Monitoring function to check error of SDI input and payload ID
● EDID, SCDC and Link Training status are displayed on the front panel
● LAN, RS-232C and GPIO (customized base) for external control

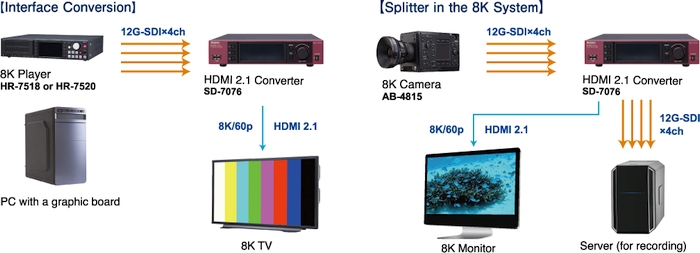

Application

Specifications

Input Format Video

SDI

Link

Resolution

Frame Rate

Color Space

Bit

Transmission Method

12G

Quad

7680×4320

60/59.94/50p

YCBCR4:2:2

10 bit

2SI

SQD

Dual

30p/29p/25p/24p/23.98p

YCBCR4:2:2

10 bit

2SI

3840×2160

120/119.88/100p

YCBCR4:2:2

10 bit

2SI

Audio

Channel

Max.32ch

Sampling Frequency

48kHz

Resolution

24bit

Output Format Video

DSC

Resolution

Frame Rate

Colorimetry

Bit

FRL Rate

12G/4L

10G/4L

8G/4L

6G/4L

6G/3L

3G/3L

OFF

7680 × 4320

60/59.94/50p

YCBCR 4:2:0

12

10

8

30/25p

RGB/YCBCR 4:4:4

12

30/25/24p

RGB/YCBCR 4:4:4

10

8

YCBCR 4:2:2

12

3840 × 2160

120/100p

RGB/YCBCR 4:4:4

12

10

8

YCBCR 4:2:2

12

10

8

ON

7680 × 4320

60/59.94/50p

RGB/YCBCR 4:4:4

8

YCBCR 4:2:2

YCBCR 4:2:2

12

YCBCR 4:2:0

12

10

8

30/25/24p

RGB/YCBCR 4:4:4

12

10

8

YCBCR 4:2:2

12

3840 × 2160

120/100p

RGB/YCBCR 4:4:4

12

10

8

Audio

Channel

Max. 8ch

Sampling Frequency

48kHz

Resolution

24bit

General Specifications

Items

Description

Power Requirements

DC 12V

Power Consumption

100W MAX

Dimensions

210(W)×44(H)×350(D)mm(excluding protrusions)

Weight

Approx. 2 kg
