Digital Video Generator

Product ID: VG-879

Latest digital interfaces HDMI 2.1, 12G-SDI , DisplayPort 1.2a, V-by-One® HD Supported.

Comparison Table

■ 8K/60p YCbCr 4:2:0(12-bit), 4K/120p YCbCr 4:4:4(12-bit) transmission by HDMI 2.1
■ 4K/60p is transmitted by one channel of 12G-SDI.
■ Max.4 slot-type interface units can be selected from HDMI 2.1, 12G-SDI, HDMI2.0b 3G or 6G,
DisplayPort 1.2a, V-by-One and Analog.
■ By synchronizing 4 or 2 units of VG-879, 8K/120p or 8K/60p signals are supported by V-by-One® HS.
■ HDMI 2.1 test functions supported
CTA-861-G Timing Format including 8K/60p YCbCr 4:2:0 and 4K/120p YCbCr 4:4:4
eARC/ARC status check
SCDC, FRL link status check
ITU-R BT.2020 color bar and video output setting
HDR Test Patterns supported
HDCP 1.4/2.3 certification test
■ HDMI 2.1 Compliance Test (MOI)
■ High bit Rate Audio Generation (VT-8500-0006)
■ Optional 8K Evaluation Image(VT-7010).

Specifications

HDMI 2.1 unit (VM-1876-MD)

■ Signal generation by FRL (Max.48Gbps) and TMDS (Max. 18Gbps) modes.

■ Uncompressed 8K/60p YCbCr4:2:0 and 4K/120p YCbCr4:4:4 signal.

■ HDCP1.4/2.3

■ Supports DSC1.2.

■ HDMI2.1 Compliance Test.

Connector

HDMI x 1

Data Rate

Max. 48Gbps (FRL), Max 18Gbps (TMDS)

Video Timing Standard

RGB, YCbCr 4:4:4, 4:2:2, 4:2:0

Color Depth

8, 10, 12, bit

HDCP

Ver. 2.3 / 1.4

Audio Format

HDMI : L-PCM, AAC, AC3 Option : VT-8500-0006 (Dolby Digital Plus, DTS HD, etc.) COAX OUT : for ARC and eARC

HDMI 6G & HDCP2.3 unit (VM-1876-M8)

■ 4K/60p (RGB/YCBCR 4:4:4) output from each channel.

■ HDCP2.3 and 1.4 are selectable.

■ HDMI2.0 Compliance Test (CTS).

Video

Connector

HDMI x 2ch (CEC, 3D, ARC, HDCP(1.4&2.3) supported)

Timing format

CEA-861F (except VIC91 and 92) Standard timings only.

Pixel clock

Max. 600MHz (Max. 6Gbps)

Audio

Output

HDMI : 8ch

Internal

Sine wave, Compressed Audio (AAC/AC3 and optional HBR audio)

HDMI unit (VM-1876-M7)

■ 4K/60p(YCBCR 4:2:0) output is supported.

■ 8K/30p is supported by using 4ch.

■ HDCP2.3 and 1.4 are supported. (following sink capability)

Video

Connector

HDMI x 4ch (CEC, 3D, ARC)

Timing format

CEA-861F (max. 300MHz or 4K 4:2:0 format) Standard Timings only.

Dot Clock(Data Rate)

Max. 300MHz (Max. 3Gbps)

HDCP

Ver1.4 and Ver2.3

Audio

Output

HDMI : 8ch

Internal

Sine wave, Compressed Audio (AAC/AC3 and optional HBR audio)

HDMI 3G unit (VM-1876A-M0)

■ 4K/60p(YCBCR 4:2:0) output is supported.

■ 8K/30p is supported by using 4ch.

■ HDCP1.4 is supported.

Video

Connector

HDMI x 4ch (CEC, 3D, ARC, HDCP(1.4) supported)

Timing format

CEA-861F (max. 300MHz or 4K 4:2:0 format) Programmable timings.

Dot Clock(Data Rate)

Max. 300MHz (Max. 3Gbps)

Audio

Output

HDMI : 8ch, COAX : 1ch (for ARC test)

Internal

Sine wave, Compressed Audio (AAC/AC3 and optional HBR audio)

DisplayPort unit (VM-1876A-M1)

■ DisplayPort Ver.1.2a based. 4K/60p is transmitted by single channel.

■ SST (Single Stream Transport) and MST (Multi Stream Transport) are supported.

■ 4K/120p output is available by using 2 ports.

■ HDCP is not supported.

Video

Connector

DisplayPort×2ch

Timing format

VESA DisplayPort Standard Ver.1.2a

Dot Clock(Data Rate)

Max. 600MHz

Video Format

RGB, YCBCR 4:4:4 / 4:2:2

Color Depth

8,10,12-bit (*Only YCBCR 12-bit is available on 12-bit output)

Audio

Output

DisplayPort (8ch)

V-by-One HS unit (VM-1876-M2)

■ 4K/120p and 8K/30p are transmitted by one unit.

■ 8K/120p (4 pcs of 4K/120p) is transmitted by 4 slot units in one VG-879.

■ This unit requires custom made cables. Please contact your local agents for details.

Video

Connector

4ch (4Lanes per channel, maximum 16Lanes by all 4ch)

Dot clock

8bit/10bit : 20 to 85MHz per lane, 12bit : 20 to 75MHz per lane

Colors

8, 10, 12bit

Format

RGB, YCBCR 4:4:4

12G-SDI unit (VM-1876-MB)

■ 4K/60p is transmitted by one channel of 12G-SDI, two channels of 6G-SDI or four channels of 3G-SDI.

■ The payload is editable.

■ Eight channels of audio and time code packet can be embedded.

■ This unit is installed in VG-879 only.

Video Out

Interface

BNC×4ch

Video Format

12G-SDI SMPTE 2082-0

6G-SDI SMPTE 2081-0

3G-SDI SMPTE 425M, 428.1M

HD-SDI SMPTE 274M, 296M, 372M, 428.1M

SD-SDI SMPTE 259M

Color depth

10, 12-bit (depends on timing format)

Audio Out

48kHz sampling (Max. 8ch embedded)

Payload

SMPTE 352M

Time Code

Free-run time code

HDBaseT Unit (VM-1876-MC)

■ HDBaseT2.0(HDMI1.4) compliant. 4K/30p and 1080p signal can be transmitted by single LAN cable.

Connector

4ch (RJ-45/LAN)

Video

HDMI

Ver1.4b (CEA-861-E)

TMDS Clock

Max. 300MHz

Video Format

RGB, YCbCr4:4:4, 4:2:2, 4:2:0

HDCP

Ver1.4

Audio

HDMI

2ch

Source

Internal sine wave, Compressed audio

iTMDS Unit (VM-1876-M9)

■ Able to support 4K/60p by one unit, 4K/120p (Cross split, Vertical 4-Split) by two units.

■ 4K/60p LVDS output is possible by using two sets of IA-1540 converter.

Video Out

DVI-I (Digital output only)

Dual Link×2

Dot Clock

DVI Mode

8-bit

25-165MHz: Single Link 50-330MHz: Dual Link

iTMDS Mode

8 to 10-bit

25-165MHz: Single Link 50-330MHz: Dual Link

12-bit

25-150MHz: Single Link 50-330MHz: Dual Link

Multi channel Mode

10 to 16-bit

25-165MHz: Dual Link 50-330MHz: Quad Link

4K×2K (Full HD 240MHz) mode

8 to 12-bit

297-660MHz: Quad Link

Timing Setting

limitation

Cross split: setting unit 4 dot, 2 line Vertical 4-Split: setting unit 8 dot, 1 line

Video Format

RGB / YCBCR 4:4:4

E-EDID

Ver.1.3(DDC2B)

Analog unit (VM-1876-MA)

Video Out

Interface

Component, Composite, VGA

Color

RGB / YPBPR

Colors (MAX)

RGB each 8-bit

Dot Clock

5 to 165MHz

HDTV

1080p / 1080i / 720p

SDTV

NTSC / PAL

PC

Programmable / Internal Timing

Functions

Teletext, Closed Caption, V-chip, Macrovision (Option)

Audio Out

Interface

RCA×2ch

Channel

2ch L / R

Frequency

32, 44.1, 48, 88.2, 96, 176.4, 192kHz

Output Level

0 to 4000mV

Synchronizing unit (VM-1876-MX)

■ 8K/120p timing is output by synchronizing four units of VG-879 by V-by-One® HS.

■ Please install one video interface and one synchronizing unit in each VG-879.

Interface

Multilink Input×1ch, Output×1ch

VG-879 (General Specification)

General specification

Power voltage

AC100 to 240V, 50/60Hz

Power consumption

260W MAX

Dimensions

430(w)x177(H)x310(D)mm (excluding projected parts)

Operating temperature range

#ERROR!

Operating humidity range

20 to 80% (no condensation)

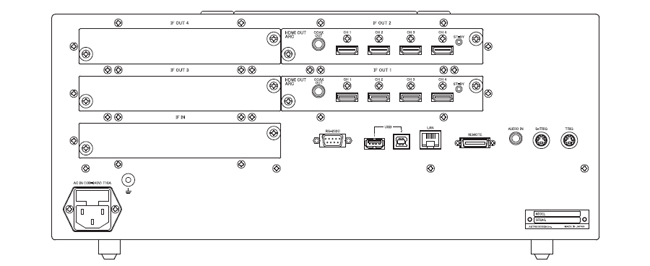

Rear View

Options

■ TIFF 10/12-bit image converting software (SP-8871)

■ HDMI One Bit Audio and High Bit Rate Audio (VT-8500-0006)

■ MPEG-4 AAC Audio (22.2ch supported) (VT-8500-0021)

■ Luminance measuring software for Konica Minolta Spectroradiometer CS-2000 (SP-8870-BM)

■ 8K/4K HDR Image Library with 8K Monoscope (VT-7010) [Data Sheet]

■ 8K/4K HDR Image Library with HDR scale patterns (VT-7009) [Data Sheet]

■ ITU-R BT.2020 (8K and 4K) Image Library (ITE images) (VT-7007) [Data Sheet]

■ Dolby Vision Image Library (VT-7012)

■ HDR10+ Test Programs (VT-7013)

■ DVI/iTMDS to LVDS converter (IA-1540)

Options

■ TIFF 10/12-bit image converting software (SP-8871)
■ HDMI One Bit Audio and High Bit Rate Audio (VT-8500-0006)
■ MPEG-4 AAC Audio (22.2ch supported) (VT-8500-0021)
■ Luminance measuring software for Konica Minolta Spectroradiometer CS-2000 (SP-8870-BM)
■ 8K/4K HDR Image Library with 8K Monoscope (VT-7010)
■ 8K/4K HDR Image Library with HDR scale patterns (VT-7009)
■ ITU-R BT.2020 (8K and 4K)  Image Library (ITE images) (VT-7007)
■ Dolby Vision Image Library (VT-7012)
■ HDR10+ Test Programs (VT-7013)
■ DVI/iTMDS to LVDS converter (IA-1540)
