NEW

HDMI 2.1 Signal Generator

Product ID: VG-887

VG-887 is a portable and easy to operate solution to HDMI 2.1 signal generation. It features the key function of HDMI 2.1 compatibility and is a more cost-effective solution compared to the top-end model VG-879.

Comparison Table

Features

● Signal generation by FRL (Max. 12Gbps/4-lane) and TMDS modes. DSC 1.2 is supported
● Uncompressed 8K/60p YCBCR 4:2:0 (12-bit), 4K/120p YCBCR 4:4:4 (12-bit) transmission
● FRL Link Training, SCDC and EDID status check
● HDCP 2.3 and 1.4 test
● Pre-installed test patterns and user’s own image data can be output
● PC control by LAN or RS-232C

Front/Rear View

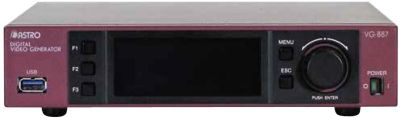

Front View
Rear View

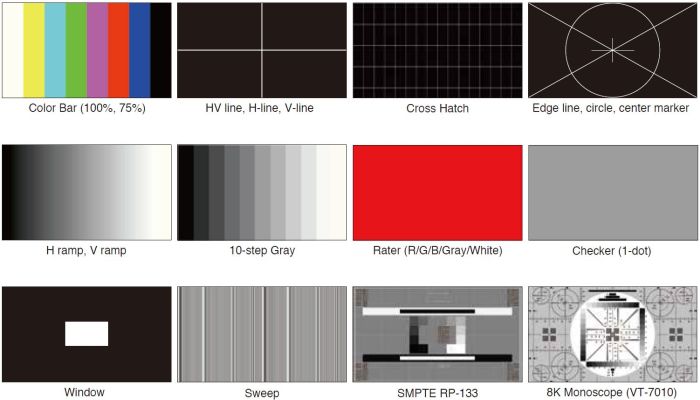

Test Patterns (example)

● User’s own image can be output from USB flash or saved in the internal memory.
● Video level change, Window size change and scroll functions are supported.
● Optional HDR Image Libraries VT-7009 and VT-7010 are available. (VT-7010 contains 8K Monoscope patterns.)

Specifications

Comparison of VG-887 and VG-879

8K Dot-by-Dot display and scroll

FRL&TMDS

DSC 1.2

InfoFrame edit

HDMI CTS

VT-7012(Dolby Vision) VT-7013(HDR10+)

Pattern edit

VG-887

VG-879 (VM-1876-MD)

✓(option)

✓(option)

HDMI Specifications

Interface

HDMI×1ch

Video

Dot Clock

Max. 1360MHz

Data Rate

Max. 48Gbps (FRL), 18Gbps (TMDS)

Video Timing

CTA-861-G

Video Format

RGB, YCBCR 4:4:4, 4:2:2, 4:2:0

Color Depth

8, 10, 12-bit

HDCP

Ver. 2.3 (FRL timing supports Ver. 2.3 only), Ver. 1.4

Audio

L-PCM 8ch

General Specifications

Power Requirements

AC100-240V

Power Consumption

60W MAX

Operating Temperature Range

0 to 40℃

Operating humidity range

20 to 80% RH (No Condensation)

Dimensions

210 (W)×44(H)×300 (D) mm (Excluding Protrusions)

Weight

Approx. 2 kg
