HDMI2.1 Protocol Analyzer

Product ID: VA-1847

Analysis of HDMI 2.1 video, audio, protocol and video timing can be performed in real time.

Features

● Supports signal analysis and generation of FRL (Fixed Rate Link) with 4 lanes of up to 12Gbps signals and TMDS with 3 lanes of up to 6 Gbps signals. [CTA-861-G VIC (Video Identification Code)]
● Supports maximum of 4K/120p YCBCR 4:2:2 and 8K/60p YCBCR 4:2:0 timings. (10K timings are not supported.
● Video, Audio, InfoFrame, HDCP (1.4, and 2.3), and SCDC analysis functions
● Supports repeater function. HDMI protocol analysis of HDMI output devices is possible
● Supports through fuction. DDC/CEC line analysis is possible without reciving video signal using a dedicated through cable.(Option)
● Logging InfoFrame (like Dynamic Range) at each individual frame with time stamps
● eARC receive/generate function,ARC receive fuction
● EDID emulation and DDC/CEC monitoring function
● New 12-inch touch panel LCD display (external mouse control also supported)
● HDMI 2.1 CTS function
● Three test modes for testing source, sync and repeater devices are available as seen below:

* When receiving YCbCr4:2:2 signal, the bit depth is displayed as “8-bit” which is a value in GCP Packet.
* Specifications and appearance are subject to change without prior notice.

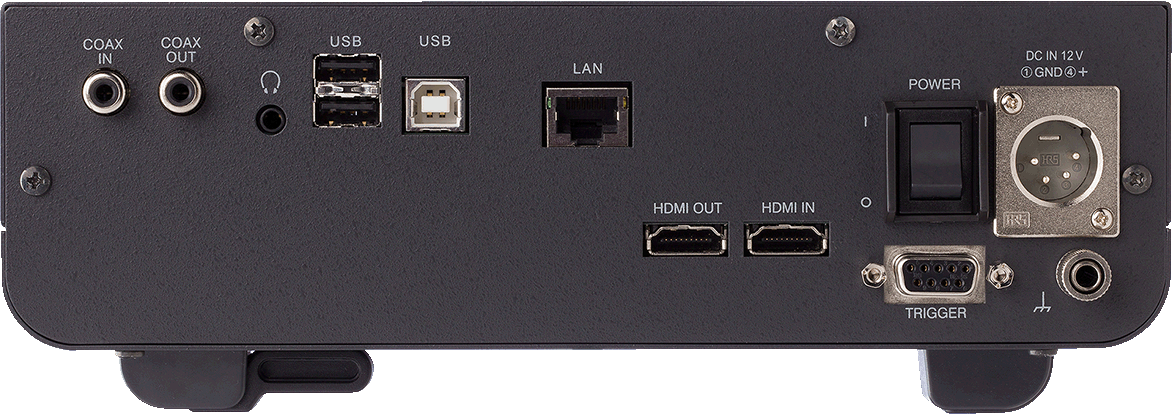

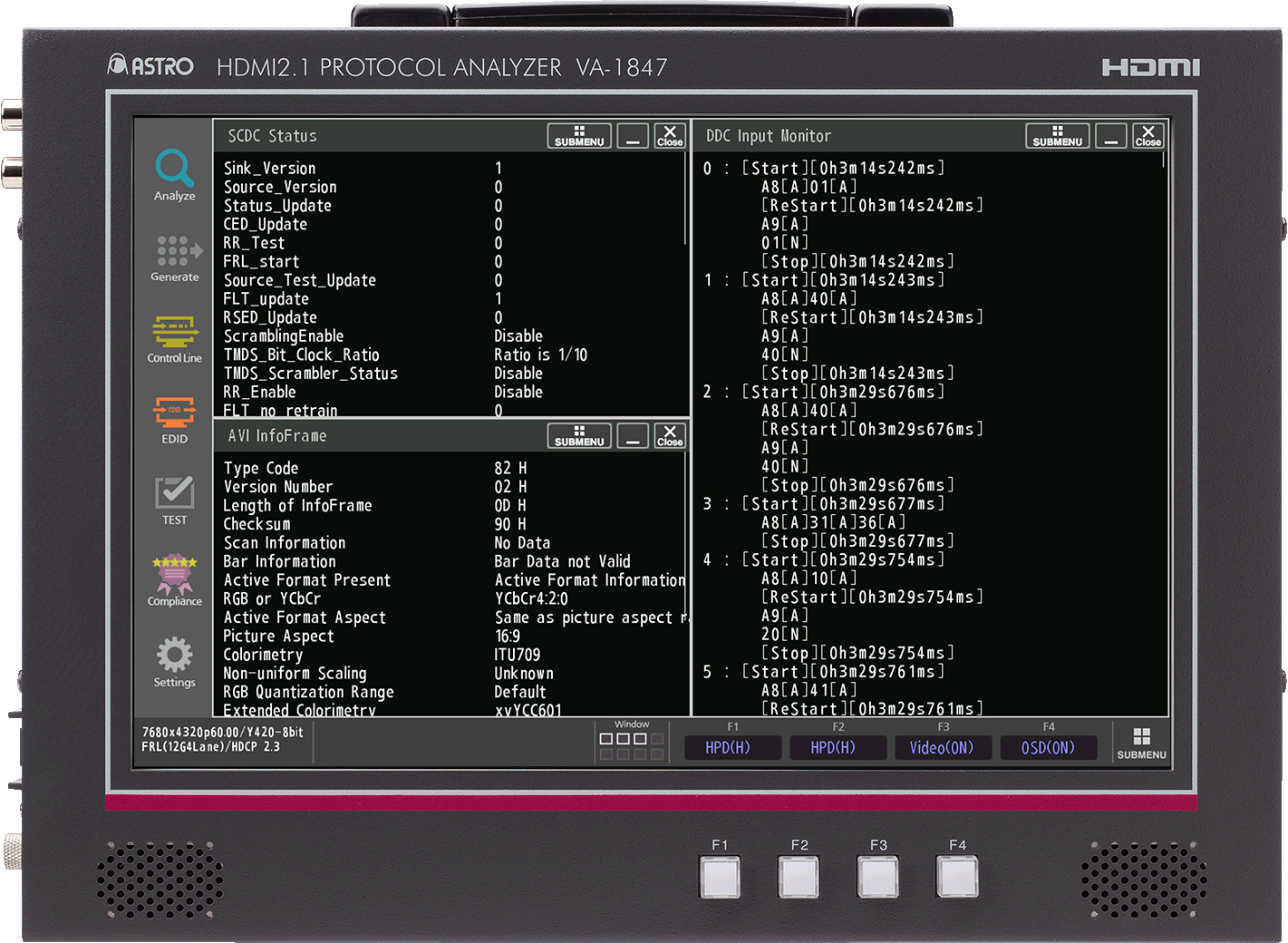

Front Panel / Side Panel
